Product Description

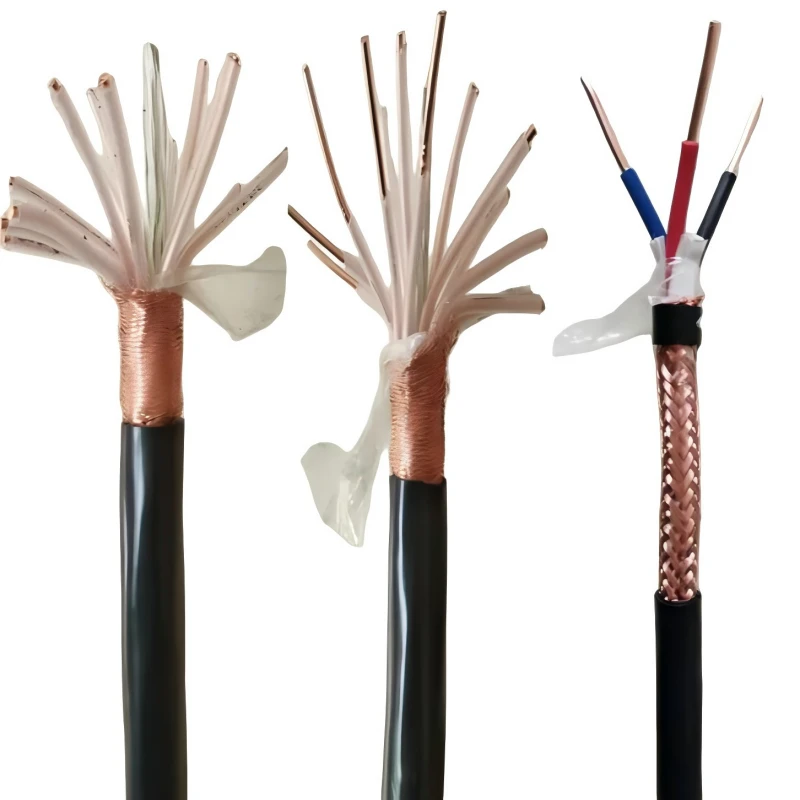

ZR-KYJV is a 450/750 V flame-retardant control cable constructed with annealed copper conductors, XLPE insulation, flame-retardant filling, non-woven tape wrapping, and a flame-retardant PVC outer sheath.
It is designed for fixed control, monitoring, protection, and signal transmission circuits in industrial electrical systems. The XLPE insulation supports a maximum operating temperature of 90°C, while the flame-retardant PVC sheath is intended for installations where flame propagation needs to be limited.
Product Identification
| Cable Model | ZR-KYJV |
| Cable Type | Flame Retardant Control Cable |
| Rated Voltage | 450/750 V |
| Conductor | Annealed Copper |
| Insulation | XLPE |
| Filler | Flame-Retardant Filling Material |
| Wrapping | Non-Woven Tape |
| Outer Sheath | Flame-Retardant PVC |
| Number of Cores | 2–61 |
| Cross Section | 0.75–10 mm² |
| Operating Temperature | Up to 90°C |
| Minimum Bending Radius | 10 × Cable Diameter |
Model Designation
ZR-KYJV
- ZR – Flame Retardant
- K – Control Cable
- YJ – XLPE Insulation
- V – PVC Sheath
Cable Construction
The cable is constructed in the following sequence:
Annealed Copper Conductor → XLPE Insulation → Flame-Retardant Filler → Non-Woven Tape Wrapping → Flame-Retardant PVC Outer Sheath
-
Conductor
Annealed copper conductors provide the electrical path for control, monitoring, protection, and signal circuits.
-
XLPE Insulation
XLPE insulation supports a maximum operating temperature of 90°C and provides electrical insulation between individual cores.
-
Flame-Retardant Filling
Flame-retardant filling material is used between the insulated cores to maintain cable shape and support the overall flame-retardant construction.
-
Non-Woven Tape
The wrapped layer helps hold the cable cores together and maintain a stable cable structure.
-
Flame-Retardant PVC Sheath
The outer PVC sheath provides mechanical protection and contributes to the cable's flame-retardant performance.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Rated Voltage | 450/750 V |
| Number of Cores | 2–61 |
| Conductor Cross Section | 0.75–10 mm² |
| Maximum Operating Temperature | 90°C |
| Minimum Bending Radius | 10 × Overall Cable Diameter |
| Conductor Material | Annealed Copper |
| Insulation Material | XLPE |
| Outer Sheath Material | Flame-Retardant PVC |
Product Performance
90°C Operating Temperature
The XLPE insulation is suitable for conductor operating temperatures up to 90°C, making the cable suitable for fixed control circuits in industrial environments.
450/750 V Rated Voltage
The cable is designed for control, monitoring, protection, and signal transmission circuits with a rated voltage of 450/750 V.
Flame-Retardant Construction
The combination of flame-retardant filling and a flame-retardant PVC outer sheath is intended for installations where flame propagation performance is required.
Wide Core and Size Range
The cable is available with:
- 2–61 cores
- 0.75–10 mm² conductor sizes
Applicable Standards
| Standard | Application |
|---|---|
| GB/T 9330 | Control cable requirements |
| JB/T 8734 | Applicable cable product requirements |
| IEC 60228 | Conductor requirements |
| IEC 60502-1 | Cable construction and testing requirements, where applicable |
| IEC 60332 | Flame propagation performance |
Common Configuration
2 × 1.5 mm²,4 × 1.5 mm²,7 × 1.5 mm²,10 × 1.5 mm²,12 × 1.5 mm²,19 × 1.5 mm²,24 × 1.5 mm²,37 × 1.5 mm²,61 × 1.5 mm²
Other configurations within the available range of 2–61 cores and 0.75–10 mm² can be selected according to project requirements.
Applications
Control Cabinets
Suitable for fixed wiring between electrical equipment, junction boxes, control cabinets, and monitoring systems where multiple control circuits are required.
PLC and Automation Systems
Used for fixed control, monitoring, and signal connections in PLC-based automation systems and industrial electrical control equipment.
Power Plants and Substations
Applicable to control, protection, monitoring, and auxiliary electrical circuits in power generation and power distribution facilities.
Petrochemical and Process Plants
Suitable for fixed control and monitoring circuits in petroleum, chemical, metallurgical, and other industrial facilities where flame-retardant cable performance is required.
Building and Infrastructure Control
Can be used in building automation, instrumentation, monitoring, and other fixed low-voltage control systems.
Installation Conditions
ZR-KYJV is intended for fixed control and signal transmission applications.
Installation recommendations include:
- Maintain a minimum bending radius of 10 × overall cable diameter
- Avoid excessive mechanical stress during installation
- Prevent contact with corrosive chemicals
- Protect the cable from sharp edges and mechanical damage
- Select the cable size and core configuration according to the electrical control system requirements
Customization Options
Available configurations can be selected according to project requirements, including:
- Number of cores
- Conductor cross section
- Cable marking
- Cable length
- Outer sheath identification
- Packaging requirements
- Applicable project standards
Quality Inspection
Before shipment, the cable can be inspected according to applicable standards and project requirements. Typical inspection items may include:
- Conductor resistance
- Insulation resistance
- Voltage testing
- Insulation thickness
- Sheath thickness
- Cable outer diameter
- Core identification
- Cable marking
- Flame-retardant performance, where required
- Final appearance inspection
